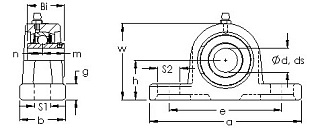

Подшипник UCP 205 (AST)

Технические характеристики

Обозначение : UCP 205

Производитель : AST

Диаметр внутренний, мм : 25

Технические данные из каталога производителя :

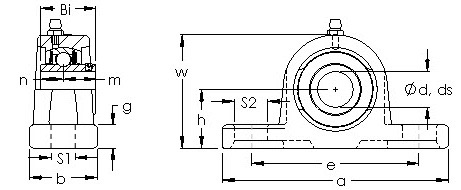

(размеры в мм)

Bearing Type - Extended inner race with set screws

Dynamic Load Rating (Cr) - 14,022

Static Load Rating (Cor) - 7,843

Shaft Dia. (Fw) - 25.0000

Shaft Height (h) - 36.5000

Housing Width (b) - 38.0000

Mounting Hole Center-to-Center (e) - 105.0000

Housing Length (a) - 140.0000

Mounting Slot Length (S2) - 19.0000

Mounting Slot Width (S1) - 13.0000

Housing Base Thickness (g) - 13.0000

Housing Height (w) - 71.0000

Bearing Inner Race Width (Bi) - 34.0000

Bearing Inner Race Width - Short Side (n) - 14.3000

Bearing Inner Race Width - Extended Side (m) - 19.7000

Mounting Bolt Size - 10.0000

Bearing Number - UCP 205

Housing Number - P 205

Shaft Dia., Nominal (d) - 25.0000

Weight (g) - 816.00

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
