Подшипник UCFL 213-40 (AST)

Технические характеристики

Обозначение : UCFL 213-40

Производитель : AST

Диаметр внутренний, мм : 63,5

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 12,871

Static Load Rating (Cor) - 9,014

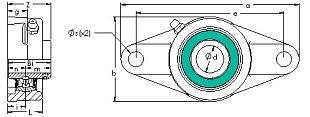

Shaft Dia. (Fw) - 2.5000

Housing Width (b) - 6.0940

Mounting Hole Center-to-Center (e) - 8.2500

Housing Length (a) - 10.1600

Housing Base Thickness (g) - 0.7800

Bearing Inner Race Width (Bi) - 2.5630

Bearing Inner Race Width - Short Side (n) - 1.0000

Bearing Inner Race Width - Extended Side (m) - 1.5630

Mounting Bolt Size - 0.5630

Housing Number - FL213

Mounting Hole Dia. (s) - 0.6406

Flange Assembly Height (Z) - 2.7500

Flange Height (l) - 1.9690

Mounting Base to Bearing Center (i) - 1.1880

Shaft Size (ds) - 2-1/2

Weight (g) - 5,182.32

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
