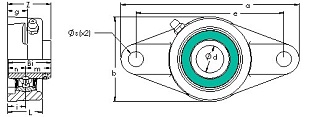

Подшипник UCFL 212-39 (AST)

Технические характеристики

Обозначение : UCFL 212-39

Производитель : AST

Диаметр внутренний, мм : 61,9252

Технические данные из каталога производителя :

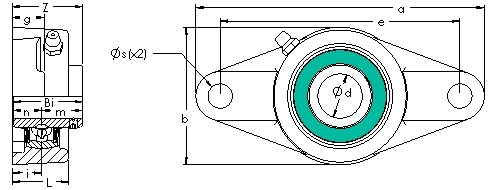

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 1,171

Static Load Rating (Cor) - 8,133

Shaft Dia. (Fw) - 2.4380

Housing Width (b) - 5.5000

Mounting Hole Center-to-Center (e) - 7.9380

Housing Length (a) - 9.8440

Housing Base Thickness (g) - 0.7200

Bearing Inner Race Width (Bi) - 2.5630

Bearing Inner Race Width - Short Side (n) - 1.0000

Bearing Inner Race Width - Extended Side (m) - 1.5630

Mounting Bolt Size - 0.5630

Housing Number - FL212

Mounting Hole Dia. (s) - 0.6406

Flange Assembly Height (Z) - 2.7190

Flange Height (l) - 1.8750

Mounting Base to Bearing Center (i) - 1.1410

Shaft Size (ds) - 2-7/16

Weight (g) - 4,185.72

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
