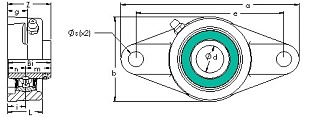

Подшипник UCFL 210-30 (AST)

Технические характеристики

Обозначение : UCFL 210-30

Производитель : AST

Диаметр внутренний, мм : 47,625

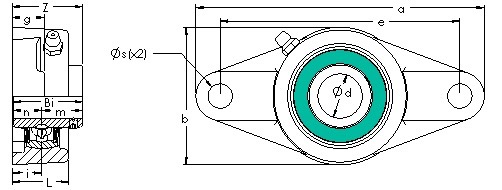

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 7,890

Static Load Rating (Cor) - 5,223

Shaft Dia. (Fw) - 1.8750

Housing Width (b) - 4.5310

Mounting Hole Center-to-Center (e) - 6.1880

Housing Length (a) - 7.7500

Housing Base Thickness (g) - 0.5900

Bearing Inner Race Width (Bi) - 2.0320

Bearing Inner Race Width - Short Side (n) - 0.7480

Bearing Inner Race Width - Extended Side (m) - 1.2840

Mounting Bolt Size - 0.5000

Housing Number - FL210

Mounting Hole Dia. (s) - 0.5938

Flange Assembly Height (Z) - 2.1560

Flange Height (l) - 1.5630

Mounting Base to Bearing Center (i) - 0.8594

Shaft Size (ds) - 1-7/8

Weight (g) - 2,192.52

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
