Подшипник UCFL 208-25 (AST)

Технические характеристики

Обозначение : UCFL 208-25

Производитель : AST

Диаметр внутренний, мм : 39,7

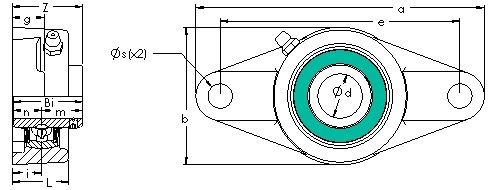

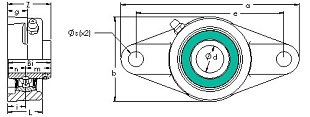

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 6,546

Static Load Rating (Cor) - 4,011

Shaft Dia. (Fw) - 1.5630

Housing Width (b) - 3.9380

Mounting Hole Center-to-Center (e) - 5.6560

Housing Length (a) - 6.8750

Housing Base Thickness (g) - 0.5600

Bearing Inner Race Width (Bi) - 1.9370

Bearing Inner Race Width - Short Side (n) - 0.7480

Bearing Inner Race Width - Extended Side (m) - 1.1890

Mounting Bolt Size - 0.4380

Housing Number - FL208E

Mounting Hole Dia. (s) - 0.5156

Flange Assembly Height (Z) - 2.0000

Flange Height (l) - 1.4060

Mounting Base to Bearing Center (i) - 0.8281

Shaft Size (ds) - 1-9/16

Weight (g) - 1,594.56

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
