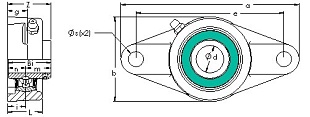

Подшипник UCFL 201-8G5PL (AST)

Технические характеристики

Обозначение : UCFL 201-8G5PL

Производитель : AST

Диаметр внутренний, мм : 12,7

Технические данные из каталога производителя :

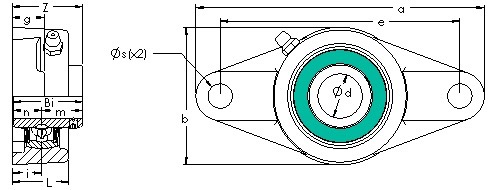

(размеры в дюймах)

Bearing Type - Thermoplastic housing

Dynamic Load Rating (Cr) - 2,887

Static Load Rating (Cor) - 1,499

Shaft Dia. (Fw) - 0.5000

Housing Width (b) - 2.5310

Mounting Hole Center-to-Center (e) - 3.5460

Housing Length (a) - 4.4680

Housing Base Thickness (g) - 0.5300

Bearing Inner Race Width (Bi) - 1.2210

Bearing Inner Race Width - Short Side (n) - 0.5000

Bearing Inner Race Width - Extended Side (m) - 0.7205

Mounting Hole Dia. (s) - 0.3950

Flange Assembly Height (Z) - 1.3130

Flange Height (l) - 1.0430

Mounting Base to Bearing Center (i) - 0.5900

Material - Molded thermoplastic housing, chrome steel bearing

Bearings are mounted in a thermoplastic housing. Open and closed covers are available.

Various bearing insert options options are described in the Nomenclature and Bearing Types information.(Not available on all sizes)

Other available types are described in the Bearing Types information.
