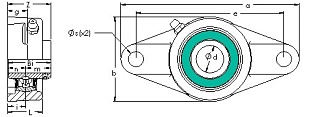

Подшипник UCFL 201-8 (AST)

Технические характеристики

Обозначение : UCFL 201-8

Производитель : AST

Диаметр внутренний, мм : 12,7

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 2,887

Static Load Rating (Cor) - 1,499

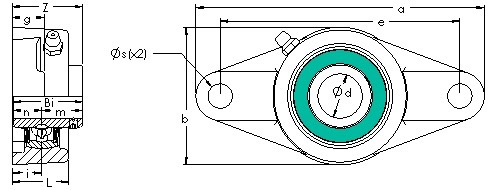

Shaft Dia. (Fw) - 0.5000

Housing Width (b) - 2.2190

Mounting Hole Center-to-Center (e) - 3.0000

Housing Length (a) - 3.8750

Housing Base Thickness (g) - 0.4400

Bearing Inner Race Width (Bi) - 1.2210

Bearing Inner Race Width - Short Side (n) - 0.5000

Bearing Inner Race Width - Extended Side (m) - 0.7205

Mounting Bolt Size - 0.3130

Housing Number - FL203E

Mounting Hole Dia. (s) - 0.3906

Flange Assembly Height (Z) - 1.3130

Flange Height (l) - 1.0000

Mounting Base to Bearing Center (i) - 0.5938

Shaft Size (ds) - 1/2

Weight (g) - 398.64

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
