Подшипник UCF 215-47E (AST)

Технические характеристики

Обозначение : UCF 215-47E

Производитель : AST

Диаметр внутренний, мм : 74,6125

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 15,163

Static Load Rating (Cor) - 10,844

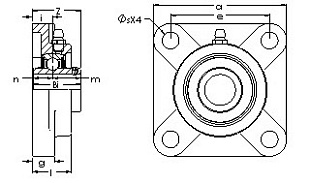

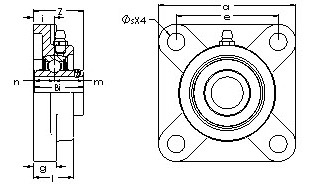

Shaft Dia. (Fw) - 2.9375

Mounting Hole Center-to-Center (e) - 6.2500

Housing Length (a) - 7.8750

Housing Base Thickness (g) - 0.8750

Bearing Inner Race Width (Bi) - 3.0630

Bearing Inner Race Width - Short Side (n) - 1.3110

Bearing Inner Race Width - Extended Side (m) - 1.7520

Mounting Bolt Size - 0.6250

Bearing Number - UC 215-47

Housing Number - F 215E

Mounting Hole Dia. (s) - 0.7500

Flange Assembly Height (Z) - 3.0940

Flange Height (l) - 2.2190

Mounting Base to Bearing Center (i) - 1.3440

Weight (g) - 6,304.90

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
