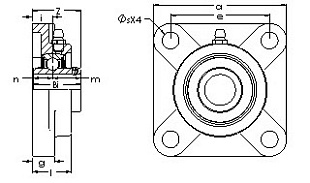

Подшипник UCF 211-32E (AST)

Технические характеристики

Обозначение : UCF 211-32E

Производитель : AST

Диаметр внутренний, мм : 50,8

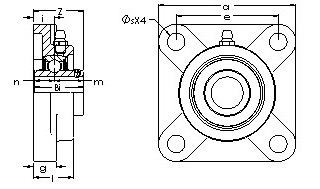

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 9,742

Static Load Rating (Cor) - 6,612

Shaft Dia. (Fw) - 2.0000

Mounting Hole Center-to-Center (e) - 5.1250

Housing Length (a) - 6.3750

Housing Base Thickness (g) - 0.7188

Bearing Inner Race Width (Bi) - 2.1890

Bearing Inner Race Width - Short Side (n) - 0.8740

Bearing Inner Race Width - Extended Side (m) - 1.3150

Mounting Bolt Size - 0.6250

Bearing Number - UC 211-32

Housing Number - F 211E

Mounting Hole Dia. (s) - 0.6719

Flange Assembly Height (Z) - 2.3130

Flange Height (l) - 1.8750

Mounting Base to Bearing Center (i) - 0.9844

Weight (g) - 3,492.64

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
