Подшипник UCF 210-32G5PL (AST)

Технические характеристики

Обозначение : UCF 210-32G5PL

Производитель : AST

Диаметр внутренний, мм : 50,8

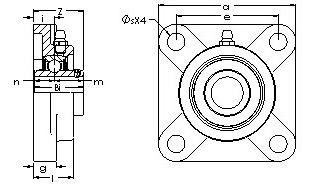

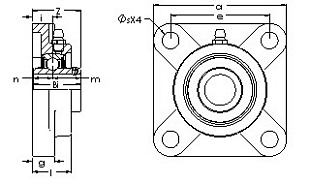

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Thermoplastic housing

Dynamic Load Rating (Cr) - 7,890

Static Load Rating (Cor) - 5,223

Shaft Dia. (Fw) - 2.0000

Mounting Hole Center-to-Center (e) - 4.3740

Housing Length (a) - 6.2600

Housing Base Thickness (g) - 0.8270

Bearing Inner Race Width (Bi) - 2.0320

Bearing Inner Race Width - Short Side (n) - 0.7480

Bearing Inner Race Width - Extended Side (m) - 1.2840

Mounting Bolt Size - 0.5630

Mounting Hole Dia. (s) - 0.6260

Flange Assembly Height (Z) - 2.2680

Flange Height (l) - 1.5630

Mounting Base to Bearing Center (i) - 0.9843

Material - Molded thermoplastic housing, chrome steel bearing

Also available with eccentric locking collar.

Bearings are mounted in a thermoplastic housing. Open and closed covers are available.

Various bearing insert options options are described in the Nomenclature and Bearing Types information.(Not available on all sizes)
