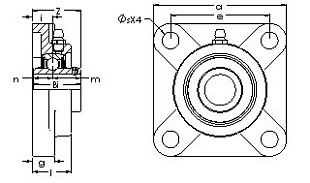

Подшипник UCF 210-32E (AST)

Технические характеристики

Обозначение : UCF 210-32E

Производитель : AST

Диаметр внутренний, мм : 50,8

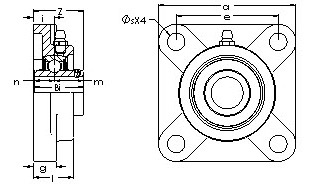

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 7,890

Static Load Rating (Cor) - 5,223

Shaft Dia. (Fw) - 2.0000

Mounting Hole Center-to-Center (e) - 4.3750

Housing Length (a) - 5.6250

Housing Base Thickness (g) - 0.6250

Bearing Inner Race Width (Bi) - 2.0320

Bearing Inner Race Width - Short Side (n) - 0.7480

Bearing Inner Race Width - Extended Side (m) - 1.2840

Mounting Bolt Size - 0.5000

Bearing Number - UC 210-32

Housing Number - F 210E

Mounting Hole Dia. (s) - 0.6250

Flange Assembly Height (Z) - 2.1560

Flange Height (l) - 1.5630

Mounting Base to Bearing Center (i) - 0.8594

Weight (g) - 2,585.46

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
