Подшипник UCF 209-28E (AST)

Технические характеристики

Обозначение : UCF 209-28E

Производитель : AST

Диаметр внутренний, мм : 44,45

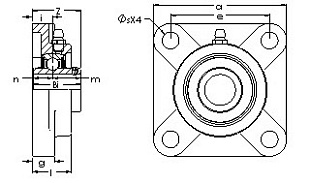

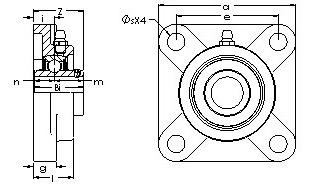

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 7,670

Static Load Rating (Cor) - 4,783

Shaft Dia. (Fw) - 1.7500

Mounting Hole Center-to-Center (e) - 4.1250

Housing Length (a) - 5.4060

Housing Base Thickness (g) - 0.6250

Bearing Inner Race Width (Bi) - 1.9370

Bearing Inner Race Width - Short Side (n) - 0.7480

Bearing Inner Race Width - Extended Side (m) - 1.1890

Mounting Bolt Size - 0.5000

Bearing Number - UC 209-28

Housing Number - F 209E

Mounting Hole Dia. (s) - 0.6250

Flange Assembly Height (Z) - 2.0630

Flange Height (l) - 1.5000

Mounting Base to Bearing Center (i) - 0.8594

Weight (g) - 2,313.31

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
