Подшипник UCF 208-25E (AST)

Технические характеристики

Обозначение : UCF 208-25E

Производитель : AST

Диаметр внутренний, мм : 39,6875

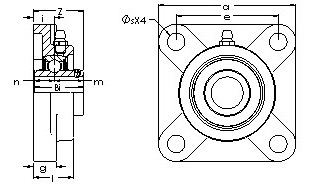

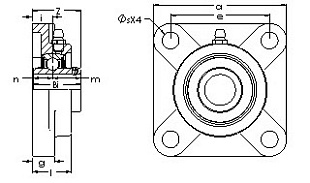

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 6,546

Static Load Rating (Cor) - 4,011

Shaft Dia. (Fw) - 1.5625

Mounting Hole Center-to-Center (e) - 4.0000

Housing Length (a) - 5.1250

Housing Base Thickness (g) - 0.5940

Bearing Inner Race Width (Bi) - 1.9370

Bearing Inner Race Width - Short Side (n) - 0.7480

Bearing Inner Race Width - Extended Side (m) - 1.1890

Mounting Bolt Size - 0.5000

Bearing Number - UC 208-25

Housing Number - F 208E

Mounting Hole Dia. (s) - 0.5469

Flange Assembly Height (Z) - 2.0310

Flange Height (l) - 1.4060

Mounting Base to Bearing Center (i) - 0.8281

Weight (g) - 1,905.08

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
