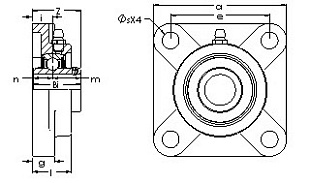

Подшипник UCF 208-24G5PL (AST)

Технические характеристики

Обозначение : UCF 208-24G5PL

Производитель : AST

Диаметр внутренний, мм : 38,1

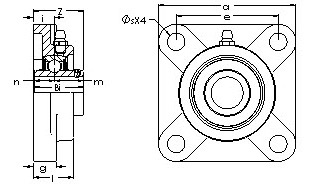

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Thermoplastic housing

Dynamic Load Rating (Cr) - 6,546

Static Load Rating (Cor) - 4,011

Shaft Dia. (Fw) - 1.5000

Mounting Hole Center-to-Center (e) - 4.0157

Housing Length (a) - 5.1260

Housing Base Thickness (g) - 0.6890

Bearing Inner Race Width (Bi) - 1.9370

Bearing Inner Race Width - Short Side (n) - 0.7480

Bearing Inner Race Width - Extended Side (m) - 1.1890

Mounting Bolt Size - 0.5000

Mounting Hole Dia. (s) - 0.5512

Flange Assembly Height (Z) - 2.0910

Flange Height (l) - 1.4690

Mounting Base to Bearing Center (i) - 0.9055

Material - Molded thermoplastic housing, chrome steel bearing

Also available with eccentric locking collar.

Bearings are mounted in a thermoplastic housing. Open and closed covers are available.

Various bearing insert options options are described in the Nomenclature and Bearing Types information.(Not available on all sizes)
