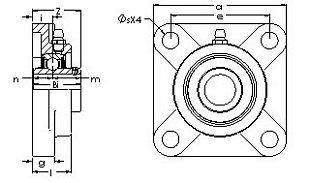

Подшипник UCF 207-23G5PL (AST)

Технические характеристики

Обозначение : UCF 207-23G5PL

Производитель : AST

Диаметр внутренний, мм : 36,5125

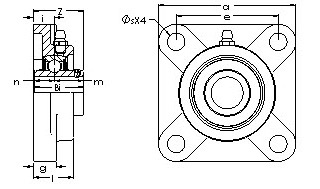

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Thermoplastic housing

Dynamic Load Rating (Cr) - 5,774

Static Load Rating (Cor) - 3,460

Shaft Dia. (Fw) - 1.4375

Mounting Hole Center-to-Center (e) - 3.6260

Housing Length (a) - 4.6500

Housing Base Thickness (g) - 0.6260

Bearing Inner Race Width (Bi) - 1.6890

Bearing Inner Race Width - Short Side (n) - 0.6890

Bearing Inner Race Width - Extended Side (m) - 1.0000

Mounting Bolt Size - 0.4370

Mounting Hole Dia. (s) - 0.5157

Flange Assembly Height (Z) - 1.8740

Flange Height (l) - 1.3740

Mounting Base to Bearing Center (i) - 0.8465

Material - Molded thermoplastic housing, chrome steel bearing

Also available with eccentric locking collar.

Bearings are mounted in a thermoplastic housing. Open and closed covers are available.

Various bearing insert options options are described in the Nomenclature and Bearing Types information.(Not available on all sizes)
