Подшипник UCF 207-21E (AST)

Технические характеристики

Обозначение : UCF 207-21E

Производитель : AST

Диаметр внутренний, мм : 33,3375

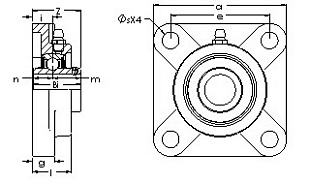

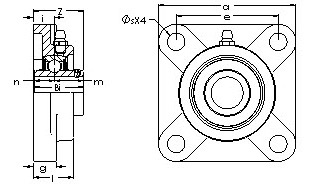

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 5,774

Static Load Rating (Cor) - 3,460

Shaft Dia. (Fw) - 1.3125

Mounting Hole Center-to-Center (e) - 3.6250

Housing Length (a) - 4.5940

Housing Base Thickness (g) - 0.5938

Bearing Inner Race Width (Bi) - 1.6890

Bearing Inner Race Width - Short Side (n) - 0.6890

Bearing Inner Race Width - Extended Side (m) - 1.0000

Mounting Bolt Size - 0.4375

Bearing Number - UC 207-21

Housing Number - F 207E

Mounting Hole Dia. (s) - 0.5156

Flange Assembly Height (Z) - 1.7500

Flange Height (l) - 1.3440

Mounting Base to Bearing Center (i) - 0.7500

Weight (g) - 1,496.85

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
