Подшипник UCF 206-19G5PL (AST)

Технические характеристики

Обозначение : UCF 206-19G5PL

Производитель : AST

Диаметр внутренний, мм : 30,1625

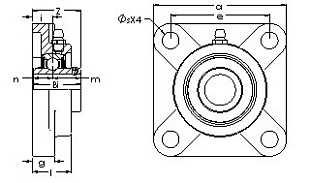

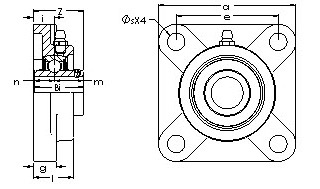

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Thermoplastic housing

Dynamic Load Rating (Cr) - 4,364

Static Load Rating (Cor) - 2,535

Shaft Dia. (Fw) - 1.1875

Mounting Hole Center-to-Center (e) - 3.2638

Housing Length (a) - 4.2200

Housing Base Thickness (g) - 0.6810

Bearing Inner Race Width (Bi) - 1.5000

Bearing Inner Race Width - Short Side (n) - 0.6260

Bearing Inner Race Width - Extended Side (m) - 0.8740

Mounting Bolt Size - 0.4370

Mounting Hole Dia. (s) - 0.5157

Flange Assembly Height (Z) - 1.6300

Flange Height (l) - 1.2400

Mounting Base to Bearing Center (i) - 0.7559

Material - Molded thermoplastic housing, chrome steel bearing

Also available with eccentric locking collar.

Bearings are mounted in a thermoplastic housing. Open and closed covers are available.

Various bearing insert options options are described in the Nomenclature and Bearing Types information.(Not available on all sizes)
