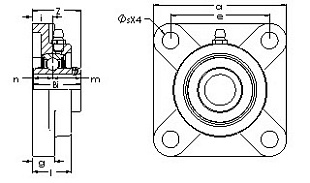

Подшипник UCF 206-18E (AST)

Технические характеристики

Обозначение : UCF 206-18E

Производитель : AST

Диаметр внутренний, мм : 28,575

Технические данные из каталога производителя :

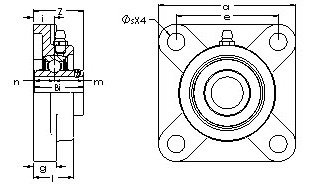

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 4,364

Static Load Rating (Cor) - 2,535

Shaft Dia. (Fw) - 1.1250

Mounting Hole Center-to-Center (e) - 3.2500

Housing Length (a) - 4.2500

Housing Base Thickness (g) - 0.5000

Bearing Inner Race Width (Bi) - 1.5000

Bearing Inner Race Width - Short Side (n) - 0.6260

Bearing Inner Race Width - Extended Side (m) - 0.8740

Mounting Bolt Size - 0.3750

Bearing Number - UC 206-18

Housing Number - F 206E

Mounting Hole Dia. (s) - 0.5156

Flange Assembly Height (Z) - 1.5940

Flange Height (l) - 1.2190

Mounting Base to Bearing Center (i) - 0.7031

Weight (g) - 1,088.62

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
