Подшипник UCF 205-15E (AST)

Технические характеристики

Обозначение : UCF 205-15E

Производитель : AST

Диаметр внутренний, мм : 23,8125

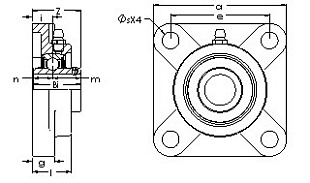

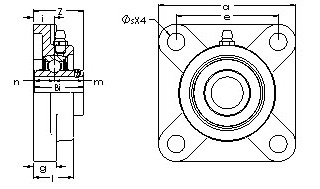

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 3,152

Static Load Rating (Cor) - 1,763

Shaft Dia. (Fw) - 0.9375

Mounting Hole Center-to-Center (e) - 2.7500

Housing Length (a) - 3.7500

Housing Base Thickness (g) - 0.5000

Bearing Inner Race Width (Bi) - 1.3390

Bearing Inner Race Width - Short Side (n) - 0.5630

Bearing Inner Race Width - Extended Side (m) - 0.7756

Mounting Bolt Size - 0.3750

Bearing Number - UC 205-15

Housing Number - F 205E

Mounting Hole Dia. (s) - 0.4531

Flange Assembly Height (Z) - 1.4060

Flange Height (l) - 1.0630

Mounting Base to Bearing Center (i) - 0.6250

Weight (g) - 861.82

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
