Подшипник UCF 204-12E (AST)

Технические характеристики

Обозначение : UCF 204-12E

Производитель : AST

Диаметр внутренний, мм : 19,05

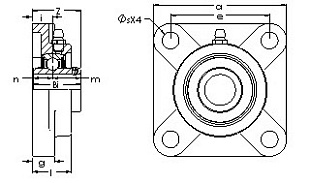

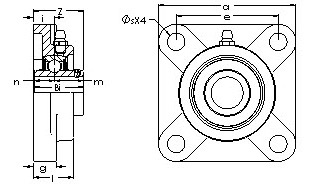

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Cast iron housing

Dynamic Load Rating (Cr) - 2,887

Static Load Rating (Cor) - 1,499

Shaft Dia. (Fw) - 0.7500

Mounting Hole Center-to-Center (e) - 2.5000

Housing Length (a) - 3.3750

Housing Base Thickness (g) - 0.4375

Bearing Inner Race Width (Bi) - 1.2210

Bearing Inner Race Width - Short Side (n) - 0.5000

Bearing Inner Race Width - Extended Side (m) - 0.7205

Mounting Bolt Size - 0.3750

Bearing Number - UC 204-12

Housing Number - F 204E

Mounting Hole Dia. (s) - 0.4375

Flange Assembly Height (Z) - 1.3130

Flange Height (l) - 1.0000

Mounting Base to Bearing Center (i) - 0.5938

Weight (g) - 635.03

Material - Cast iron housing, chrome steel bearing

Also available with eccentric locking collar.

Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.

Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.
