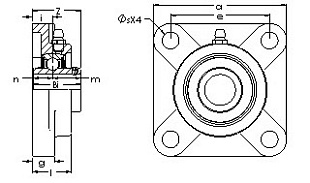

Подшипник UCF 201-8G5PL (AST)

Технические характеристики

Обозначение : UCF 201-8G5PL

Производитель : AST

Диаметр внутренний, мм : 12,7

Технические данные из каталога производителя :

(размеры в дюймах)

Bearing Type - Thermoplastic housing

Dynamic Load Rating (Cr) - 2,887

Static Load Rating (Cor) - 1,499

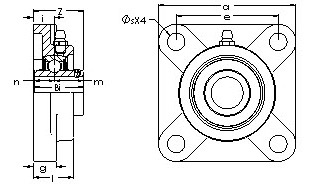

Shaft Dia. (Fw) - 0.5000

Mounting Hole Center-to-Center (e) - 2.1260

Housing Length (a) - 3.0310

Housing Base Thickness (g) - 0.5236

Bearing Inner Race Width (Bi) - 0.5000

Bearing Inner Race Width - Short Side (n) - 0.7205

Bearing Inner Race Width - Extended Side (m) - 0.7205

Mounting Bolt Size - 0.3740

Mounting Hole Dia. (s) - 0.4210

Flange Assembly Height (Z) - 1.4290

Flange Height (l) - 1.1020

Mounting Base to Bearing Center (i) - 0.7087

Material - Molded thermoplastic housing, chrome steel bearing

Also available with eccentric locking collar.

Bearings are mounted in a thermoplastic housing. Open and closed covers are available.

Various bearing insert options options are described in the Nomenclature and Bearing Types information.(Not available on all sizes)
