Подшипник GEH530HT (AST)

Технические характеристики

Обозначение : GEH530HT

Производитель : AST

Диаметр внутренний, мм : 530

Диаметр наружный, мм : 750

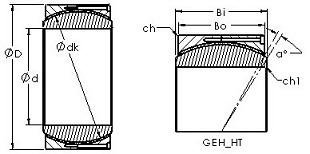

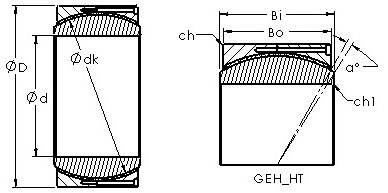

Технические данные из каталога производителя :

(размеры в мм)

Bearing Type - circumfrential split - extra wide

Bore Dia (d) - 530.0000

Outer Dia (D) - 750.0000

Outer Width (Bo) - 355.0000

Inner Width (Bi) - 375.0000

Dynamic Load Rating (Cr) - 43,000,000

Static Load Rating (Cor) - 86,000,000

Max. shaft corner radius, or 45 deg. chamfer (ch1) - 2.000

Max. housing corner radius, or 45 deg. chamfer (ch) - 5.000

Spherical Diameter (dk or Dk) - 673.000

Mis-alignment Angle (a deg.) - 2

Weight (g) - 620,000.00

Material - Outer ring made from carbon steel, inner ring is made from 52100 chrome steel, or equivalent

This spherical plain bearing has a two piece carbon steel outer ring with a PTFE fabric liner, split circumfrentially, held together with screws, the inner ring is chrome plated.

This is a maintenance free bearing with a PTFE fabric liner and a hard chrome plated ball, lubrication is not recomended.

The bearing must be protected from dirt and contamination.
