Подшипник GEH400XT-2RS (AST)

Технические характеристики

Обозначение : GEH400XT-2RS

Производитель : AST

Диаметр внутренний, мм : 400

Диаметр наружный, мм : 580

Технические данные из каталога производителя :

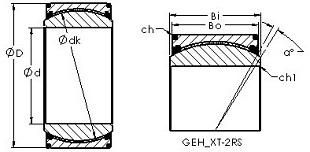

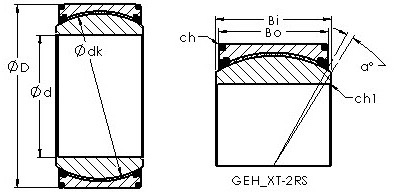

(размеры в мм)

Bearing Type - double fractured - extra wide, sealed

Bore Dia (d) - 400.0000

Outer Dia (D) - 580.0000

Outer Width (Bo) - 265.0000

Inner Width (Bi) - 280.0000

Dynamic Load Rating (Cr) - 24,510,000

Static Load Rating (Cor) - 49,020,000

Max. shaft corner radius, or 45 deg. chamfer (ch1) - 1.500

Max. housing corner radius, or 45 deg. chamfer (ch) - 4.000

Spherical Diameter (dk or Dk) - 514.000

Mis-alignment Angle (a deg.) - 2

Weight (g) - 290,000.00

Material - Inner ring and outer ring are made from 52100 chrome steel, or equivalent

This spherical plain bearing has a double fractured chrome steel outer ring with a PTFE fabric liner, held together with retaining rings, the inner ring is chrome plated.

This bearing has two plastic seals.

This is a maintenance free bearing with a PTFE fabric liner and a hard chrome plated ball, lubrication is not recomended.

The bearing must be protected from dirt and contamination.
