Подшипник GEH320XT-2RS (AST)

Технические характеристики

Обозначение : GEH320XT-2RS

Производитель : AST

Диаметр внутренний, мм : 320

Диаметр наружный, мм : 460

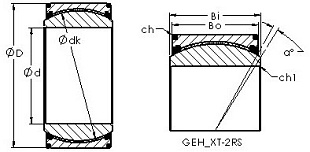

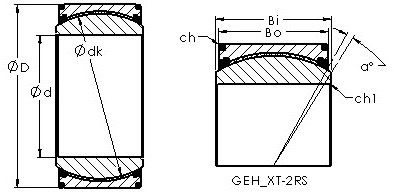

Технические данные из каталога производителя :

(размеры в мм)

Bearing Type - double fractured - extra wide, sealed

Bore Dia (d) - 320.0000

Outer Dia (D) - 460.0000

Outer Width (Bo) - 218.0000

Inner Width (Bi) - 230.0000

Dynamic Load Rating (Cr) - 16,240,000

Static Load Rating (Cor) - 32,480,000

Max. shaft corner radius, or 45 deg. chamfer (ch1) - 1.100

Max. housing corner radius, or 45 deg. chamfer (ch) - 3.000

Spherical Diameter (dk or Dk) - 414.000

Mis-alignment Angle (a deg.) - 2

Weight (g) - 148,000.00

Material - Inner ring and outer ring are made from 52100 chrome steel, or equivalent

This spherical plain bearing has a double fractured chrome steel outer ring with a PTFE fabric liner, held together with retaining rings, the inner ring is chrome plated.

This bearing has two plastic seals.

This is a maintenance free bearing with a PTFE fabric liner and a hard chrome plated ball, lubrication is not recomended.

The bearing must be protected from dirt and contamination.
