Подшипник GEH110HT (AST)

Технические характеристики

Обозначение : GEH110HT

Производитель : AST

Диаметр внутренний, мм : 110

Диаметр наружный, мм : 160

Технические данные из каталога производителя :

(размеры в мм)

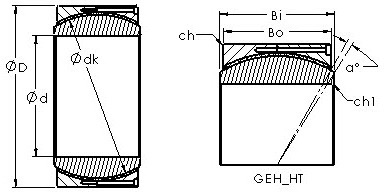

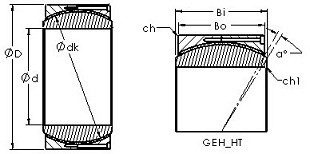

Bearing Type - circumfrential split - extra wide

Bore Dia (d) - 110.0000

Outer Dia (D) - 160.0000

Outer Width (Bo) - 74.0000

Inner Width (Bi) - 78.0000

Dynamic Load Rating (Cr) - 1,600,000

Static Load Rating (Cor) - 3,860,000

Max. shaft corner radius, or 45 deg. chamfer (ch1) - 1.000

Max. housing corner radius, or 45 deg. chamfer (ch) - 1.000

Spherical Diameter (dk or Dk) - 145.000

Mis-alignment Angle (a deg.) - 2

Weight (g) - 6,210.00

Material - Outer ring made from carbon steel, inner ring is made from 52100 chrome steel, or equivalent

This spherical plain bearing has a two piece carbon steel outer ring with a PTFE fabric liner, split circumfrentially, held together with screws, the inner ring is chrome plated.

This is a maintenance free bearing with a PTFE fabric liner and a hard chrome plated ball, lubrication is not recomended.

The bearing must be protected from dirt and contamination.
