Подшипник GEG15ET-2RS (AST)

Технические характеристики

Обозначение : GEG15ET-2RS

Производитель : AST

Диаметр внутренний, мм : 15

Диаметр наружный, мм : 30

Технические данные из каталога производителя :

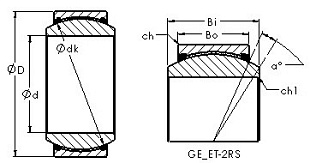

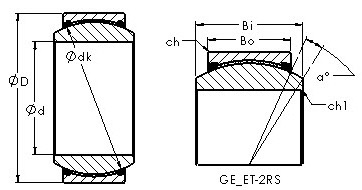

(размеры в мм)

Bearing Type - single fracture - sealed, high mis-alignment

Bore Dia (d) - 15.0000

Outer Dia (D) - 30.0000

Outer Width (Bo) - 10.0000

Inner Width (Bi) - 16.0000

Dynamic Load Rating (Cr) - 32,000

Static Load Rating (Cor) - 75,000

Max. shaft corner radius, or 45 deg. chamfer (ch1) - 0.300

Max. housing corner radius, or 45 deg. chamfer (ch) - 0.300

Spherical Diameter (dk or Dk) - 25.000

Mis-alignment Angle (a deg.) - 16

Weight (g) - 48.00

Material - Inner ring and outer ring are made from 52100 chrome steel, or equivalent

This spherical plain bearing has a single fractured chrome steel outer ring with a PTFE fabric liner, the inner ring is chrome plated.

This bearing has two plastic seals.

This is a maintenance free bearing with a PTFE fabric liner and a hard chrome plated ball, lubrication is not recomended.

The bearing must be protected from dirt and contamination.
