Подшипник GE300XT/X-2RS (AST)

Технические характеристики

Обозначение : GE300XT/X-2RS

Производитель : AST

Диаметр внутренний, мм : 300

Диаметр наружный, мм : 430

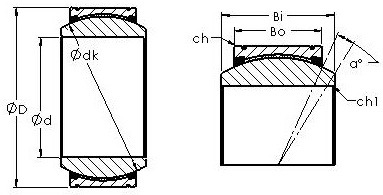

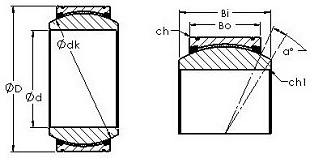

Технические данные из каталога производителя :

(размеры в мм)

Bearing Type - sealed

Bore Dia (d) - 300.0000

Outer Dia (D) - 430.0000

Outer Width (Bo) - 120.0000

Inner Width (Bi) - 165.0000

Dynamic Load Rating (Cr) - 6,750,000

Static Load Rating (Cor) - 16,200,000

Max. shaft corner radius, or 45 deg. chamfer (ch1) - 1.100

Max. housing corner radius, or 45 deg. chamfer (ch) - 1.100

Spherical Diameter (dk or Dk) - 375.000

Mis-alignment Angle (a deg.) - 7

Weight (g) - 77,600.00

Material - Inner ring and outer ring made from stainless steel

This spherical plain bearing has a double fractured stainless steel outer ring with a PTFE fabric liner, held together with retaining rings, the inner ring is stainless steel.

This bearing has two plastic seals.

This is a maintenance free bearing with a PTFE fabric liner, lubrication is not recomended.

The bearing must be protected from dirt and contamination.
