Подшипник GE20ET/X-2RS (AST)

Технические характеристики

Обозначение : GE20ET/X-2RS

Производитель : AST

Диаметр внутренний, мм : 20

Диаметр наружный, мм : 35

Технические данные из каталога производителя :

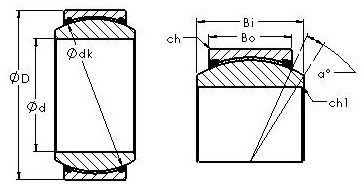

(размеры в мм)

Bearing Type - sealed

Bore Dia (d) - 20.0000

Outer Dia (D) - 35.0000

Outer Width (Bo) - 12.0000

Inner Width (Bi) - 16.0000

Dynamic Load Rating (Cr) - 45,000

Static Load Rating (Cor) - 104,000

Max. shaft corner radius, or 45 deg. chamfer (ch1) - 0.300

Max. housing corner radius, or 45 deg. chamfer (ch) - 0.300

Spherical Diameter (dk or Dk) - 29.000

Mis-alignment Angle (a deg.) - 9

Weight (g) - 64.00

Material - Inner ring and outer ring made from stainless steel

This spherical plain bearing has a single fractured stainless steel outer ring with a PTFE fabric liner, the inner ring is stainless steel.

This bearing has two plastic seals.

This is a maintenance free bearing with a PTFE fabric liner, lubrication is not recomended.

The bearing must be protected from dirt and contamination.
