Подшипник ASTEPBW 6290-020 (AST)

Технические характеристики

Обозначение : ASTEPBW 6290-020

Производитель : AST

Диаметр внутренний, мм : 60

Диаметр наружный, мм : 90

Технические данные из каталога производителя :

(размеры в мм)

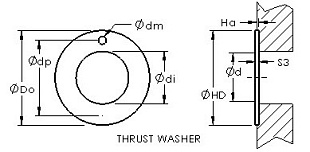

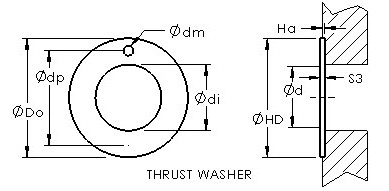

Bearing Type - thrust washer

Shaft Dia., Nominal (d) - 60.0000

Bearing Outside Diameter, Nominal(Do) - 90.000

Washer Inside Diameter, Nominal (di) - 62

Washer Inside Diameter Tolerance (di tol.) - +0.25 / -0.0

Washer Outside Diameter, Nominal (Do) - 90

Washer Outside Diameter Tolerance (Do tol.) - +0.0 / -0.25

Washer Thickness, Nominal (S3) - 2

Washer Thickness Tolerance (S3 tol.) - +0.0 / -0.05

Mounting Hole Dia. (dm) - 4.000

Mounting Hole Pitch Dia. (dp) - 76

Housing Counterbore Depth (Ha) - 1.50

Housing Counterbore Depth Tolerance (Ha tol.) - +0.2 / -0.2

Housing Counterbore Diameter, Nominal (HD) - 90.000

Housing Counterbore Diameter Tolerance (HD tol.) - +0.12 / -0.0

Material - Molded plastic with self lubricating resins.

This bearing can operate dry or with lubrication.

Please review the technical information on the requirements for the mating shaft.

See the ASTEPB Product information for the available materials.

Recommended fitting tolerance: Housing = H7, Shaft = h9,
